Bladder Scan I Bladder Volume Tester I BVT02

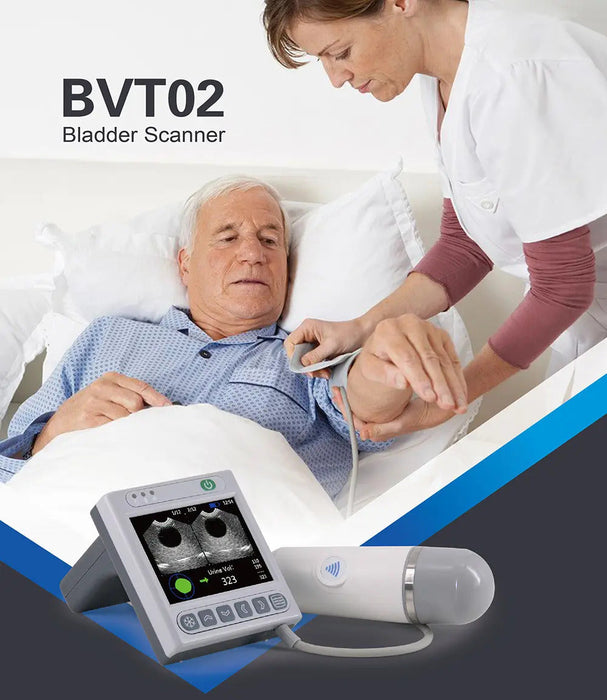

 BVT02 Portable Bladder Scanner – 3D Bladder Volume Measurement System

The BVT02 Bladder Scanner is a noninvasive bladder volume measurement system designed to support point-of-care assessment in healthcare settings. Featuring a 2.5 MHz 3D probe, multi-plane volume calculation, and a portable design, this device helps healthcare professionals assess bladder volume without invasive procedures.

Key Features and Benefits

• Noninvasive Bladder Volume Measurement: Supports bladder volume assessment without catheterization for measurement.

• 3D Scanning Technology: Uses a 2.5 MHz probe and 12 scanning planes at 15° intervals to calculate bladder volume.

• Broad Measurement Range: Measures bladder volumes from 20 mL to 999 mL, with a display resolution of 1 mL.

• Specified Measurement Accuracy: Manufacturer-stated error of ±15 mL for measurements from 20–99 mL and ±15% for measurements from 100–999 mL.

• Portable and Lightweight: Main unit weighs approximately 750 g, including the probe and battery, for convenient use in suitable clinical environments.

• Rechargeable Battery: Internal battery provides approximately four hours of operation, according to the supplied specifications.

• Versatile Clinical Applications: Designed for use in appropriate settings such as urology, obstetrics and gynecology, geriatrics, rehabilitation, surgery, recovery rooms, emergency departments, and extended care.

• Support for Clinical Assessment: May assist qualified healthcare professionals in evaluating urinary retention, monitoring postoperative bladder function, and making informed decisions about catheterization.

6. Medical Services: Urology; Obstetrics-Gynecology; Geriatrics; Pediatrics; Rehabilitation; Surgical; Operation Room; Recovery Room; Emergency; Intensive Care; Extended Care.

7. Effects: Diagnose urinary retention and evaluate many common urological conditions; Prevent unnecessary catheterization; Reduce rates of urinary tract infection; Monitor post-operative recovery; Help caregivers manage and treat incontinence; Reduce costs and save staff time

Technical Specifications

• Model: BVT02

• Product Type: Portable 3D Bladder Scanner

• Probe Frequency: 2.5 MHz

• Volume Calculation: 12 planes at 15° intervals

• Display Resolution: 1 mL

• Measurement Range: 20–999 mL

• Accuracy, 20–99 mL: Error ≤ ±15 mL

• Accuracy, 100–999 mL: Error ≤ ±15%

• Power Supply: AC 100–240 V, 50–60 Hz

• Input: DC 12 V, 3.0 A

• Main Unit Dimensions: Approximately 90 × 98 × 25 mm

• Main Unit Weight: Approximately 750 g, including probe and battery

• Battery Runtime: Approximately 4 hours

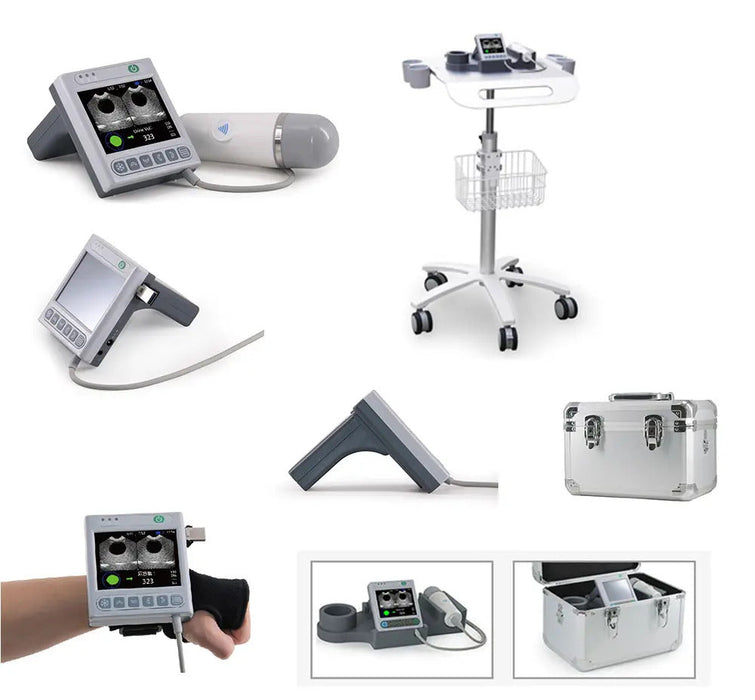

Package Includes

• BVT02 main unit – 1

• 2.5 MHz 3D probe – 1

• Power adapter – 1

• OTG USB drive – 1

• Internal battery – 1

• Optional accessory: Calibration cup

A Practical Bladder Assessment Solution

The BVT02 is designed for healthcare facilities seeking a portable bladder volume scanner for noninvasive assessment. Its 3D probe, defined measurement range, and battery-powered operation offer practical features for appropriate clinical workflows.

Important: This device is intended for use according to its manufacturer's instructions and applicable regulatory requirements. Clinical interpretation and decisions regarding catheterization or treatment should be made by qualified healthcare professionals. Noninvasive scanning does not replace clinical evaluation when indicated.
