Bladder Volume Tester I BVT01

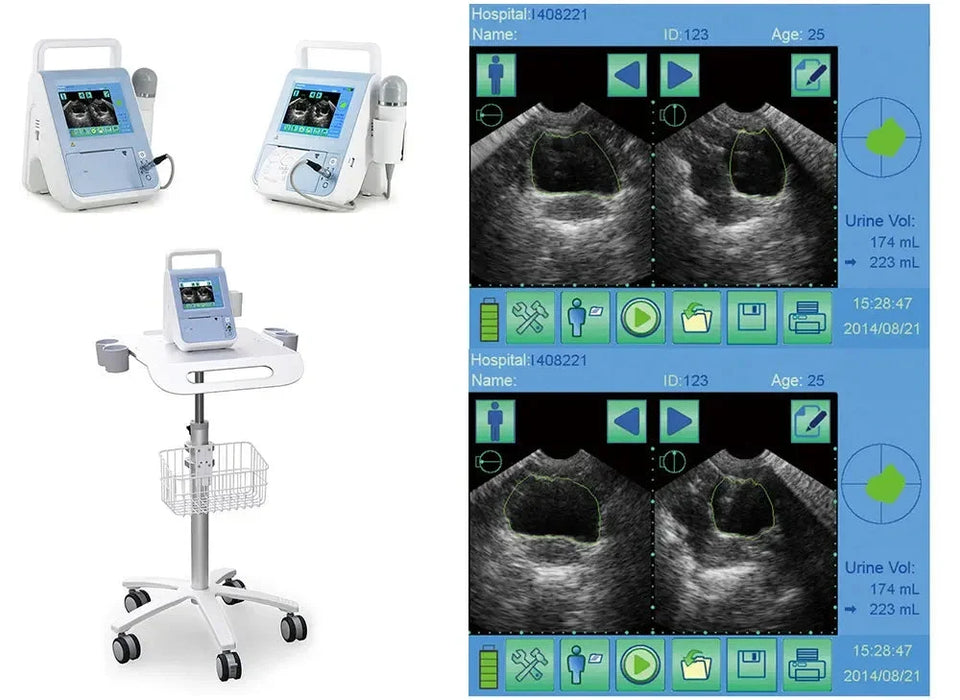

BVT01 Bladder Scanner – Portable Bladder Volume Measurement System

The BVT01 Bladder Scanner is a medical bladder volume measurement system designed to support noninvasive bladder assessment in healthcare settings. Featuring a 7-inch color LED touchscreen, a 2.5 MHz probe, and a built-in thermal printer, this device combines convenient operation with image review and data management capabilities.

Key Features and Benefits

• 7-Inch Color Touchscreen: Provides a clear, user-friendly interface for scanning and reviewing results.

• Fast Scanning: Manufacturer-stated scan time of less than 4 seconds.

• 12-Frame Image Review: Allows users to review 12 scanning images to support assessment.

• Built-In Thermal Printer: Enables convenient printing of scan results.

• USB Connectivity: Supports data storage and software updates according to device compatibility.

• Multilingual Interface: Custom language options include English, French, Russian, Spanish, Portuguese, and Norwegian.

• Noninvasive Bladder Assessment: Supports bladder volume measurement without invasive catheterization for the measurement itself.

• Rechargeable Battery: Provides approximately 7 hours of operation according to the supplied specifications.

• Versatile Healthcare Applications: Suitable for evaluation in appropriate urology, obstetrics and gynecology, geriatrics, pediatrics, rehabilitation, surgical, recovery, emergency, intensive-care, and extended-care settings.

6.  Multi-language customized(English, French, Russian, Spanish, Portuguese, Norway).

7.  Medical services: Urology; Obstetrics-Gynecology; Geriatrics; Pediatrics; Rehabilitation; Surgical; Operation Room; Recovery Room; Emergency; Intensive Care; Extended Care.

8.  Effects: Diagnose urinary retention and evaluate many common urological conditions; Prevent unnecessary catheterisation; Reduce rates of urinary tract infection; Monitor post-operative recovery; Help caregivers manage and treat incontinence; Reduce costs and save staff time.

Technical Specifications

• Model: BVT01

• Product Type: Bladder Volume Scanner

• Display: 7-inch color LED touchscreen

• Probe Frequency: 2.5 MHz

• Volume Calculation: 12 reference planes at 15° intervals

• Display Resolution: 1 mL

• Measurement Range: 20–999 mL

• Accuracy, 20–99 mL: Error ≤ ±15 mL

• Accuracy, 100–999 mL: Error ≤ ±15%

• Scan Time: Less than 4 seconds, according to the manufacturer

• Power Supply: AC 100–240 V, 50–60 Hz

• Input: DC 12 V, 3.0 A

• Dimensions: Approximately 200 × 168 × 165 mm

• Main Unit Weight: Approximately 1.7 kg without accessories

• Battery Runtime: Approximately 7 hours

• Printer: Built-in thermal printer

• Connectivity: USB port

Package Includes

• BVT01 main unit – 1

• 2.5 MHz probe – 1

• Power adapter – 1

• Lithium battery – 1

• Touch pens – 2

Optional accessories: Battery charger, foot switch, trolley, and verification cup.

A Practical Solution for Clinical Bladder Assessment

The Medivetix BVT01 offers a combination of touchscreen operation, rapid scanning, image review, and built-in printing for suitable healthcare environments. It is designed to support qualified healthcare professionals in assessing bladder volume and evaluating patients when urinary retention or postoperative bladder monitoring is a concern.

Important: Use according to the manufacturer's instructions and applicable medical-device requirements. Clinical interpretation and treatment decisions must be made by qualified healthcare professionals. Verify specifications, language availability, and regulatory status before purchase.
